Nylon flexit tube

Merchandise details

Nylon flexit tube
Features
・Excellent in flame retardant at heat and abrasion resistance, this tube is the most suitable to protect electrical wire
・Excellent in crashworthiness and lightweight, and also in electrical insulating properties and resistance to variety of chemicals
・Easily to cut using special tools
Material
Nylon (UL94V-2)
Color
Black
Type List (CP)
Part
No.		 Specification Measure (mm) Packing
figure
(m)
a
(I.D. φ)		 b
(O.D. φ)		 c d e f g
CP-07 1/4" 6.8±0.4 10.0±0.4 2.72 0.60 0.30 1.52 0.35±0.1 100
CP-09 5/16" 9.6±0.4 13.0±0.4 2.93 0.60 0.30 1.73 50
CP-11 3/8" 12.0±0.4 15.8±0.4 3.18 0.70 0.30 1.88 0.45±0.1 50
CP-16 1/2" 16.2±0.4 21.2±0.4 3.46 0.61 0.40 2.05 50
CP-21 3/4" 21.9±0.4 28.5±0.4 4.76 0.75 0.50 3.01 0.6±0.1 50
CP-29 1" 27.6±0.6 34.5±0.5 4.76 0.85 0.60 2.71 50
CP-36 1 1/4" 36.0±0.6 42.5±0.5 6.35 1.15 0.75 3.70 0.75±0.1 25
CP-48 2" 47.0±0.8 54.5±0.8 6.35 1.10 0.75 3.75 25

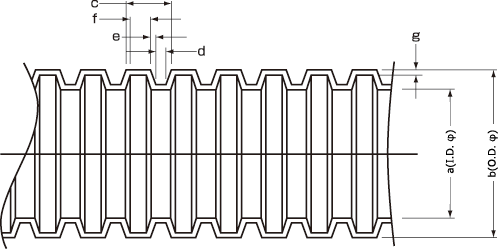

Dimensional drawing
General property
  Unit Standard value Measuring method
Ratio - 1.14 ASTM D-792
Intake rate Wt％ 1.8 ASTM D-570
Tensile yield point strength MPa 77 ASTM D-638
Tensile fracture point strength ％ >200
Flexural strength MPa 112 ASTM D-790
Bending elastic modulus GPa 2.5
Impact strength Izod Notched J/m 69 ASTM D-256
Rockwell hardness R-scale 120 ASTM D-785
Strength in shear MPa 66 ASTM D-732
Deflection temperature under load 451kPA
1,820kPa		 ℃ 170
65		 ASTM D-648
