Profile extrusion molding

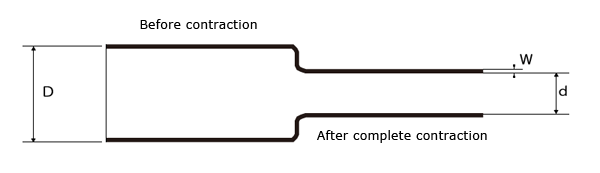

| Part No. | Bore diameter before contraction |
Bore diameter after complete contraction |
Thickness after complete contraction |
Length (mm) |
Quantity (pieces) |
| Minimum value(mm)D | Maximal value(mm)d | Minimum value(mm)W | |||
| KHSST-6 | 6.6 | 3.0 | 0.56 | 1,000 | 10 |
| KHSST-8 | 8.6 | 4.0 | 0.56 | 1,000 | 10 |
| KHSST-12 | 12.7 | 6.0 | 0.56 | 1,000 | 10 |
| KHSST-18 | 19.0 | 9.0 | 0.76 | 1,000 | 10 |
