Noise Protecting Tube, Snap Type(80μm)

Merchandise details

Noise Protecting Tube, Snap Type(80μm)
Features
・The snap design permits the tube to be fit and released easily without using a tool.
・Uses the 80μm aluminum foil that is expected of a high shield effect as noise controls
Color
Black
Type List (KATS80)
Part No. Nominal Size Length Materials/Characteristics
KATS80-15 15φ 25ｍ Sheet section:
Fire-resistant flexible vinyl chloride
+PET +Aluminum foil
+1.25sq mesh texture
(Plainly braided tinned copper mesh)
Interlock section:
Snap buttons
(Polyacetal Resins)
KATS80-20 20φ
KATS80-25 25φ
KATS80-30 30φ
KATS80-40 40φ
KATS80-50 50φ
KATS80-70 70φ
KATS80-100 100φ

Sheet part VTM-O compliant suitability

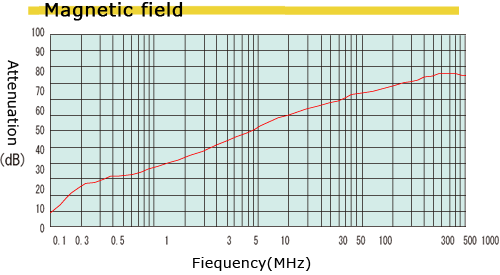

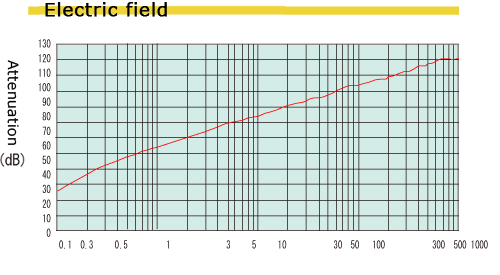

Shielding Effects
