Noise Protecting Tube,Slide Lock Type

Merchandise details

Noise Protecting Tube,Slide Lock Type
Features
・Slide lock tube that uses aluminum foil with high shielding effects to control noise.
・The material is so flexible that it can fit any shape and produce a neat appearance.
・The interlock section provides excellent air-tightness to prevent the inclusion of external dust.
・Available in 9 sizes from 15φ to 100φ, the tube ensures ideal insulation for different wiring needs.
Color
Black

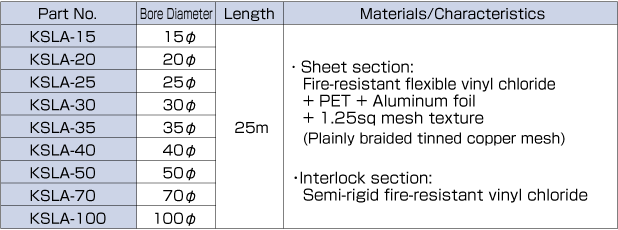

Type List (KSLA)

Sheet part VTM-O compliant suitability

Cross Section
Shielding Effects


How to Use
・Wrap the tube around pieces in such manner that the aluminum foil comes inside, and interlock the tube such that the mesh texture contacts with the aluminum foil.
・The mesh texture can serve as a ground wire.
How to Interlock

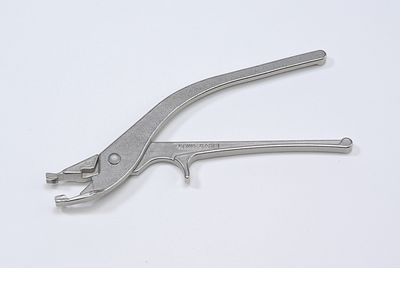

The tube can be interlocked easily using the exclusive slider (optional).
専用スライダー（別売り）
Packaging
・The external case has a slot from which you can pull the tube out to use.
・Not using any metallic parts, the bobbin and the external case can be readily disposed of.
