Conductive Fabric Tape

Merchandise details

Conductive Fabric Tape
Features
・Conducted shield strengthening using a conductive adhesive material.
・Fine flexibility
・RoHS compliant product
・Equivalent of UL510FR
Material
・Base material: Fire-resistant conductive fabric(Color: Gray)
・Adhesive: Conductive adhesive
Operating temperature
   -10℃～50℃

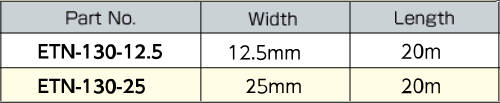

Type List(ETN)


 　　　　　　　　　　　　　　　　　　*Width range is available from 2mm to 90mm

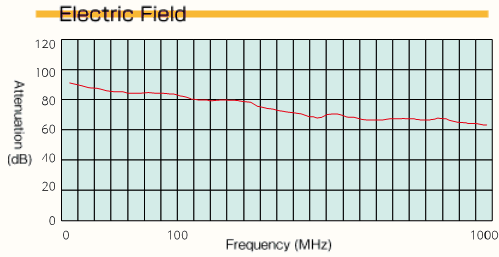

Shielding Effects


 　　　　　　　　*The above data are not a guaranteed but measured values.
Cross Section
