Noise Protecting Tube,Magic Type

Merchandise details

Noise Protecting Tube,Magic Type
Features
・Magic fastener tube that uses aluminum foil with high shielding effects to control noise.
・The magic design permits the tube to be fit and released quickly without using a tool.
・Available in 7 sizes from 20φ to 100φ, the tube ensures ideal insulation for different wiring needs.
・The material is so flexible that it can fit any shape and help produce a neat appearance.
Color
Black
Type List (KAT)
Part No. Nominal Size Length Materials/Characteristics
KAT-20 20φ 25ｍ Sheet section:
Fire-resistant flexible vinyl chloride
+PET +Aluminum foil
+1.25sq mesh texture
(Plainly braided tinned copper mesh)
Interlock section:
Magic fasteners
Width of hook and loop fasteners each:16mm
KAT-25 25φ
KAT-30 30φ
KAT-40 40φ
KAT-50 50φ
KAT-70 70φ
KAT-100 100φ

Sheet part VTM-O compliant suitability

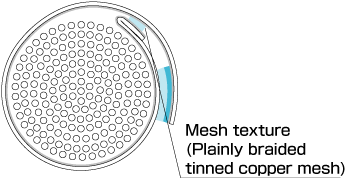

Cross Section

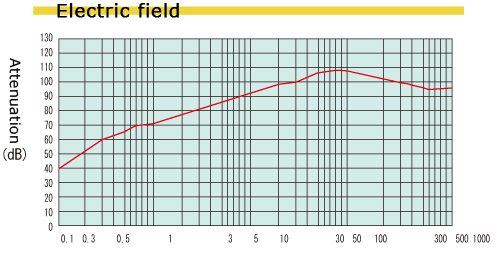

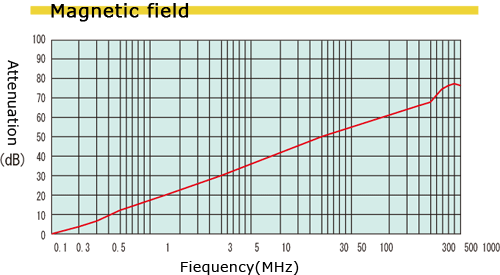

Shielding Effects

Packaging
・The external case has a slot from which you can pull the tube out to use.
・Not using any metallic parts, the bobbin and the external case can be readily disposed of.
