BNF cores

Merchandise details

BNF cores
Features
・Easily to populate cables which are prewired as two-fraction's type
・The lock does not come off easily
Application
Noise control of digital equipment(effective for a high frequency)
Color
G(Gray)   B(Black)   I(Ivory)
・Gray      BNF-****G
・Black     BNF-****B
・Ivory     BNF-****I
Type List(BNF)
Part No. Type Size(mm) Quantity(Case) Color
A B C D E Gray Black Ivory
BNF-1525 1 13.3 5.0 25.0 11.5   60 Standard goods
BNF-0930 1 19.5 9.0 35.0 17.5   32 Standard goods Build to order
BNF-1730 1 16.5 7.0 30.0 15.0   56 Standard goods Build to order
BNF-12 2 15.5 7.0 22.0 18.0   50 Standard goods
BNF-14 3 18.8 7.0 31.0     30 Standard goods Build to order
BNF-18 3 23.7 10.0 31.0     20 Standard goods Build to order
BNF-27 3 33.0 14.0 31.5     20 Standard goods
BNF-12H 4 14.7 7.5 22.0 18.0   50 Standard goods
BNF-2629 4 31.0 12.0 40.0 35.0   40 Standard goods
BNF-1130 4 20.5 11.0 36.0 32.0   30 Standard goods Build to order
BNF-1010 5 24.5 10.0 19.5 13.5 28.5 30   Standard goods
BNF-1512 5 29.0 15.0 21.5 15.0 34.5 24   Standard goods
BNF-0822 6 20.0 8.0 22.0     40     Build to order
BNF-0917 7 21.0 17.0 9.0 20.0 19.0 30 Build to order
BNF-2915 8 29.5 17.5 22.0 11.5 2.0 50   Build to order

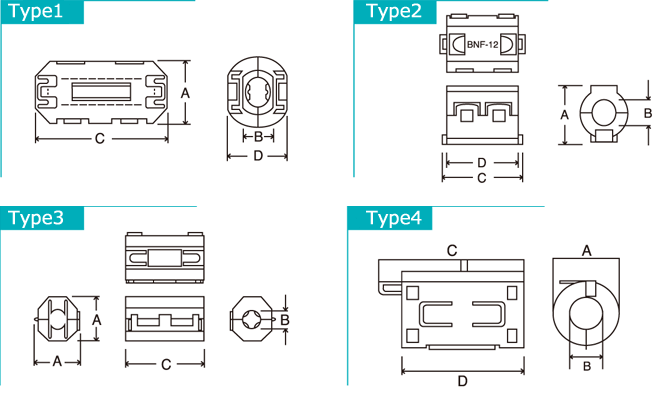

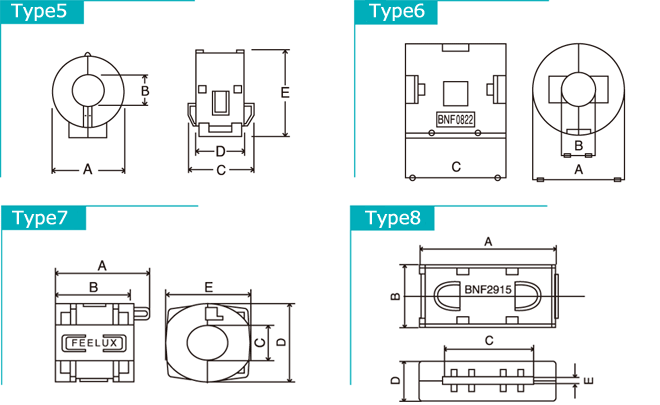

Cross Section

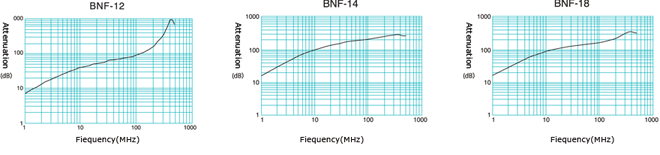

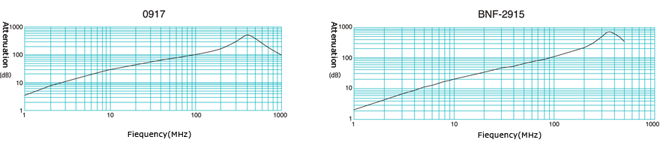

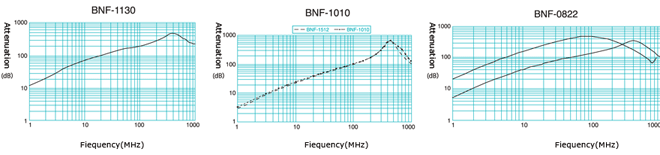

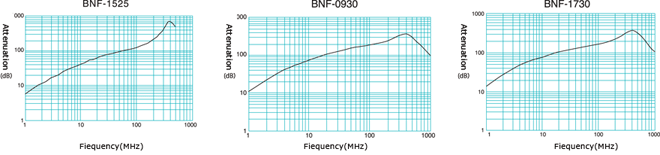

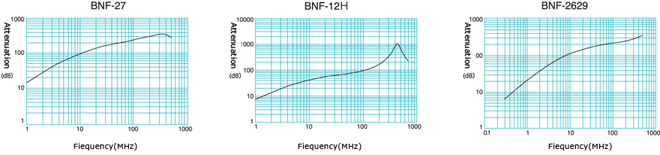

Shielding Effects
>>closeup
