Wiring Duct

Merchandise details

Wiring Duct
Material
Rigid vinyl chloride (Self-extinguishing material rated 94V-0)
Color
Gray
Length
2m
Designation Format
KD-(Type)-(Length)-(Side Holes)
Example: Type 26, length 2m, and H type side holes > KD-26-20H

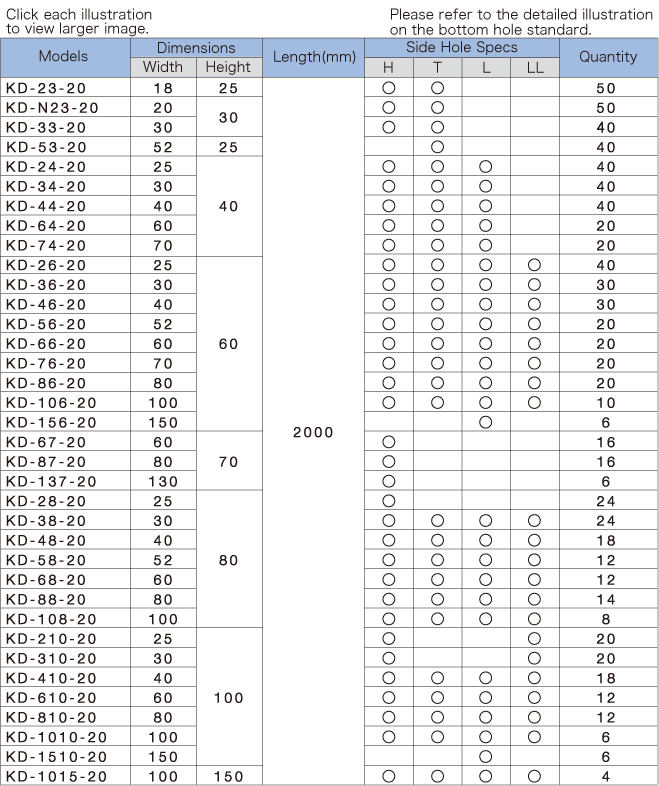

Type List
KD-23-20 KD-N23-20 KD-33-20 KD-53-20 KD-24-20 KD-34-20 KD-44-20 KD-64-20 KD-74-20 KD-26-20 KD-36-20 KD-46-20 KD-56-20 KD-66-20 KD-76-20 KD-86-20 KD-106-20 KD-156-20 KD-67-20 KD-87-20 KD-137-20 KD-28-20 KD-38-20 KD-48-20 KD-58-20 KD-68-20 KD-88-20 KD-108-20 KD-210-20 KD-310-20 KD-410-20 KD-610-20 KD-810-20 KD-1010-20 KD-1510-20 KD-1015-20
一括表示

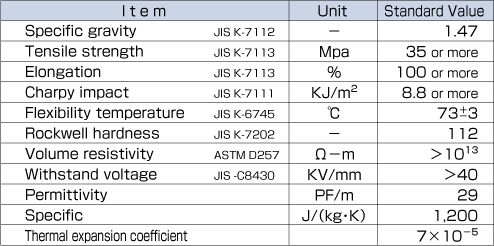

Physical Characteristics

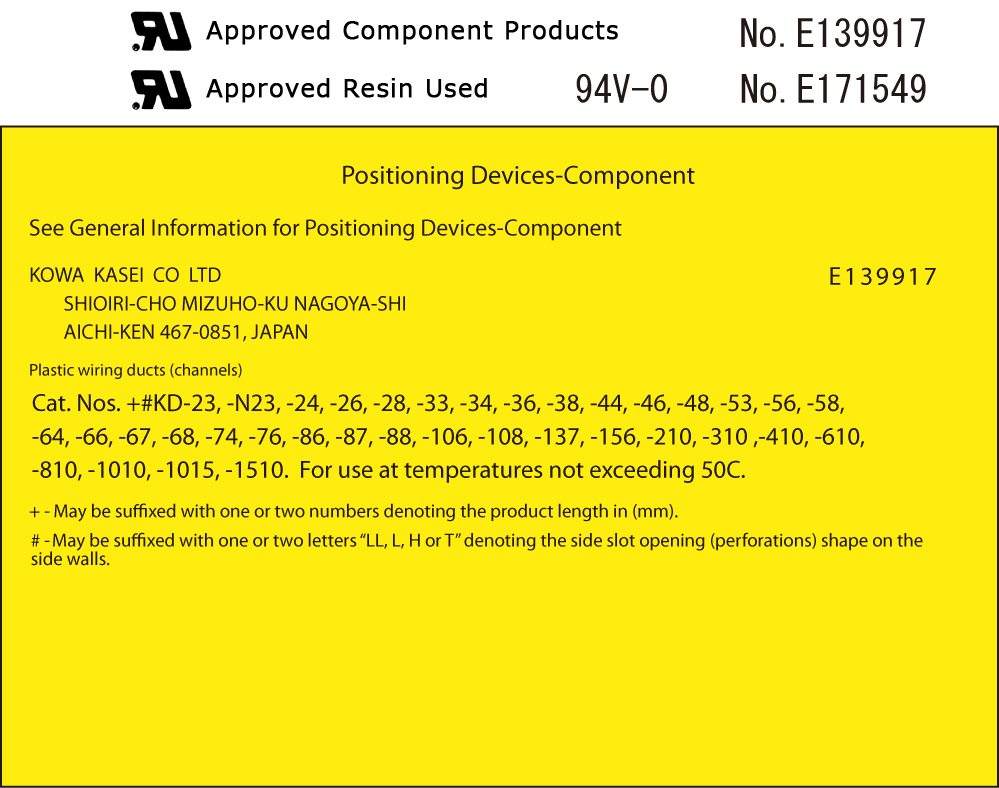

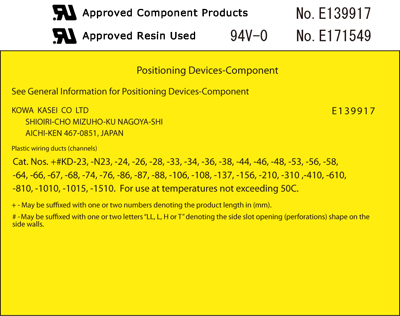

UL Approved Component
>> closeup

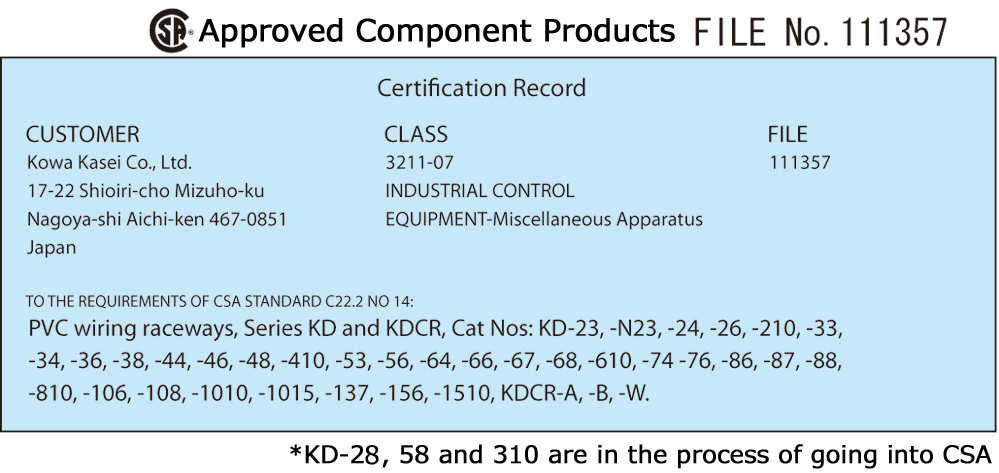

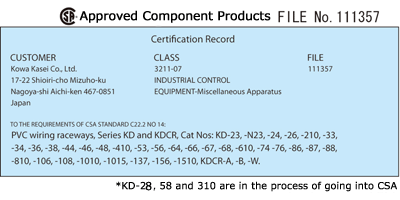

CSA Approved Component
>> closeup
