Material
Rigid vinyl chloride (Self-extinguishing material rated 94V-0)
Color
Gray
Quantity
10 pieces
Type List
| H type Separator with side hole |
LL type Separator with side hole |
(unit mm) |
| Type |
W |
H |
Length |
Type |
W |
H |
Length |
| KDS-60 |
12 |
55 |
1,000 |
KDS-60LL |
12 |
55 |
1,000 |
| KDS-80 |
15 |
75 |
KDS-80LL |
15 |
75 |
| KDS-100 |
15 |
95 |
KDS-100LL |
15 |
95 |
Standard product:lucludes mounting hole and double-faced type
Also available without side and mounting hole or tape upon request

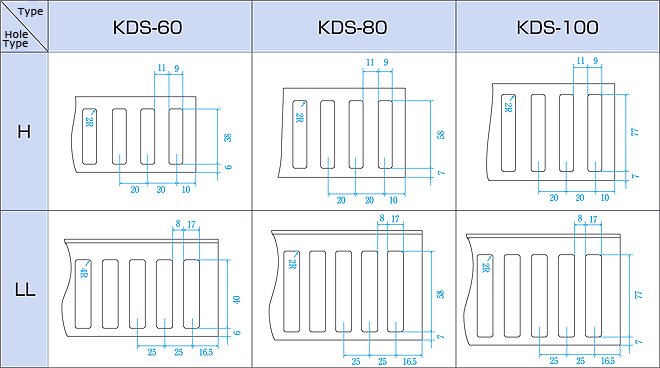

Side Hole Specs
