Features
・The burr-free cutter eliminates the need to deburr the cut surface with a file etc. after cutting.
・Reduces cutting time and saves man hour.
・So easy and simple to handle that anyone can cut DIN rails readily.
・Using the exclusive scale permits just the required length to be cut off with ease.

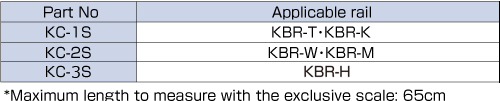

Type List(KC-*S)
Applicable rail's list

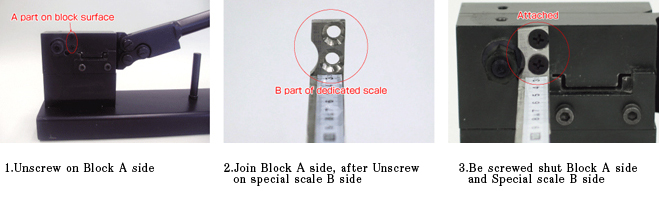

How to Attach the Exclusive Scale
How to Use
1)Raise the handle.
2)Insert a rail piece along the guide through the insertion hole. The rail can be inserted from either side of left and right.
3)Set the piece to cut off the right length as shown below.
When using the exclusive scale:
Before cutting, check the required length with the scale.
When not using the exclusive scale:
Take the length 20mm shorter than required and align it with the end face of the block at the opposite
side of insertion.
There is no distinction in the way a piece is set whether it is inserted from left or right.
4)Push down the handle to cut the piece.
Notes for Use
Do not use the product for any applications other than cutting aluminum DIN rails.

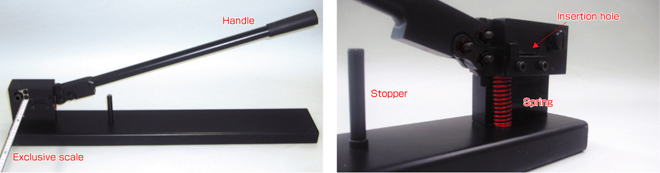

Part Names
