Features
・NR (Natural Rubber)
…Most popular black sponge that is light in weight and excellent in tensile strength, elasticity, and abrasion resistance.
・CR (Chloroprene Rubber)
…Excellent in oil, heat, and weather resistance and ideal for outside use.
・ERP (Ethylene Propylene Rubber)
…Excellent especially in weather, ozone, and heat resistance.
・NEO (Neo Latex)
…NR sponge is coated with CR rubber.

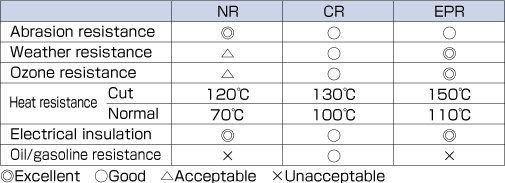

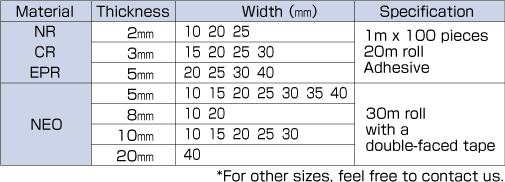

Type List (NR/CR/EPR/NEO) / Specs
Performance
Designation Format
| (Material)-(Thickness)-(Width)-(Spec/S: 1m type or L: 20m roll type)
|
| Example: |
NR-5-20-S …Natural rubber |
5mm thick, 20mm wide, and 1m long |
| |
CR-3-30-L …Chloroprene rubber |
3mm thick, 30mm wide, and 20m roll |
| |
NEO-10-20 …Neo latex |
thick and 20mm wide |
| *There is no specification of length for neo latex, for which only the 30m roll type is available. |
About custom-order
・The rubber sponge satisfies your needs with its wide variation that takes full advantage of different types of natural and synthetic rubber.
・Applications include: door packing, gaskets, vibration-proof materials, water-/moisture-proof packing, buffering materials, heat-insulating seals, and sound-insulating materials.
・For custom orders such as specified colors, irregular shapes, and secondary fabrication, feel free to contact us.
