Features
・Fitting to a wiring bracket improves shock resistance.
・Allows for upward and downward installation.
・The hungers can be fit even after wiring work is done.
・Wiring work can be done even after the hungers are fit.
Application
Designed to support a wiring bracket
Material
Steel sheet
Surface Treatment
Trivalent chromate treatment
Quantity
50 sets (1 set: one piece for right and left each)
Type List(KWB-H)

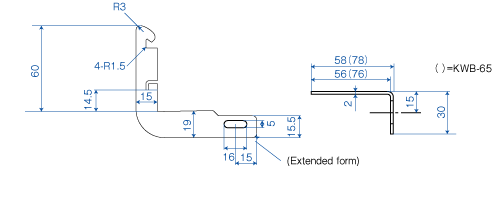

Cross Section

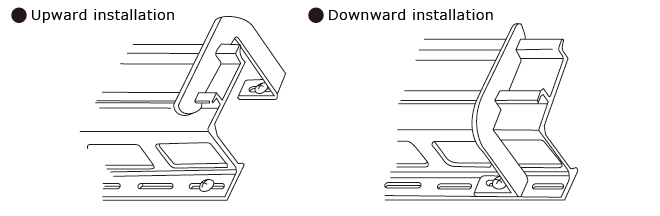

How to Use
Notes for Use
・Downward installation may loosen the mounting screws due to vibrations from transportation etc. To prevent this, use spring washers etc.
・Do not use the product for applications other than the above.
