Plastic angle

Merchandise details

Pla angle
Application
Please use this for electric wires, intermediate support or the installation of a light load parts needing the insulation characteristics of the cables.
Features
・It is possible to infix the wires through banding bands at oval hole
・It is possible to choice a side by use because cross-section shape is a concavo-convex figure
・Applied UL approval materials
・Easier to cut process than metallic
Material
・Polyvinyl chloride
Specification
・Color : Gray
・Length 1,000mm /piece
・Quantity per packing 20pieces/pack
Type(KPA)
KPA-1000

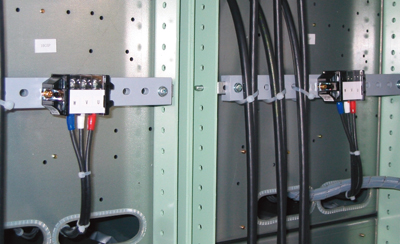

Example of Use

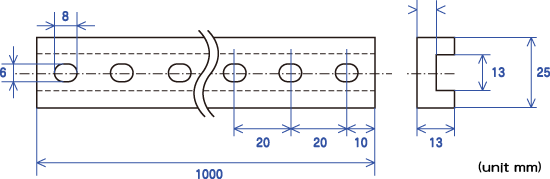

Dimensional drawing
