| Material | ・Sheet section Flame-retardant vinyl chloride |
|---|---|
| Color | Reversible type (black and gray) Gray |
| Standard length | 25m 50m |
| Operating temperature | -15℃ to 70℃ |
Features

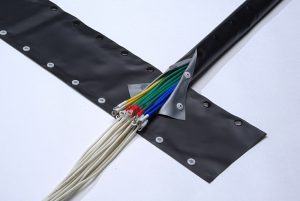

- Snap fastener design permits the tube to be fit and detached easily without using a tool.
- Available in 9 sizes from 10φ to 100φ, the tube fits any wiring variation for perfect coating.
- Snap fastener design makes it easy to change or check the wiring.
- The material is so flexible that it can fit any wiring shape and help produce neat appearance.
- Partially detachable, the tube permits the branching of wiring.
- The reversible type (black and gray) can be flexibly used depending on applications and purposes.
- The reversible type (black and gray) meets two color needs, contributing to inventory reduction.

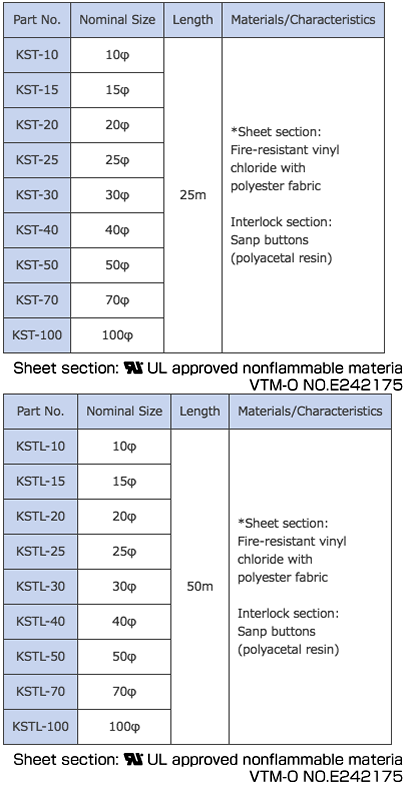

Type List（KST)
Part Numbering Rule
【25m】
◆Reversible type (R)
KST-(Nominal Size)R Example: Nominal size of 20φ
◆Gray type (G)
KST-(Nominal Size)G Example: Nominal size of 30φ
【50m】
◆Reversible type (R)
KSTL-(Nominal Size)R Example: Nominal size of 20φ
◆Gray type (G)
KSTL-(Nominal Size)G Example: Nominal size of 30φ

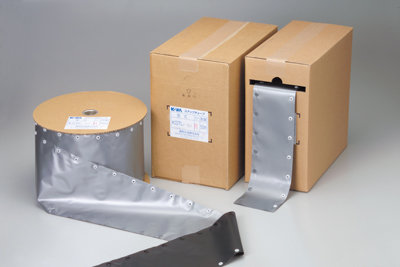

Packing Method and Unit
【25m】
◆Packed in a compact cardboard box, the tube can be pulled out in required length from the slot of the box.
【50m】
◆Wound on a bobbin and packed in a compact cardboard box, the tube can be pulled out in required length from the slot of the box.
