| Material | ・Sheet section: Fire resistant vinyl chloride ・Interlock section: Fire-resistant semi-rigid vinyl chloride |
|---|---|
| Color | Black |
| Standard length | 50m（10φ～50φ） 25m（70φ～100φ） |
| Operating temperature | -15℃ to 70℃ |
Features
- Adopting resin films which do not contain cloth for the sheet section
- The interlock section provides excellent air-tightness to prevent the inclusion of external dust.
- The tube can be interlocked easily using the exclusive slider.
- The sheet section passed a 1200V withstand voltage test.
- Combustibility is equivalent to VW-1 compliance (Planning to add antistatic function).

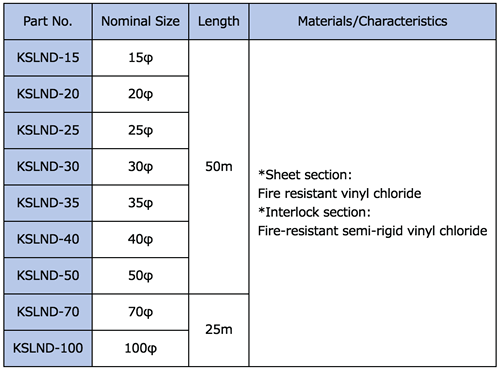

Type List (KSLND)
Packing
◆The tube can be pulled out from the slot of the external box.
◆Not using any metallic parts, the bobbin and the external box can be readily discarded.

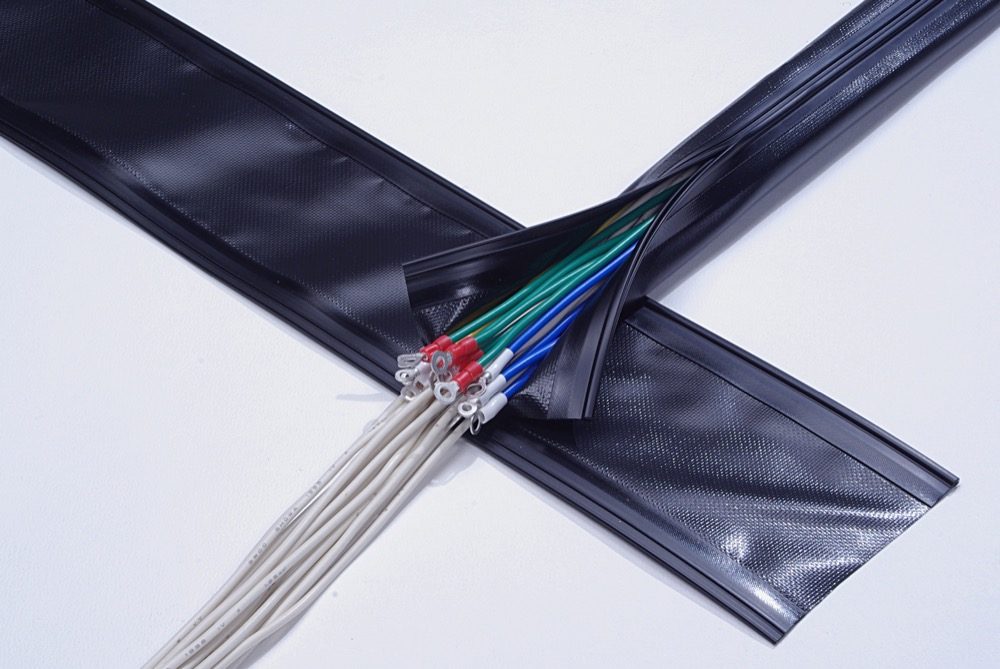

Interlock
The cut section is free from fiber dust
The tube can be interlocked easily using the exclusive slider (optional).
