| Material | ・Seet section: fire-resistant vinyl chloride with polyester fabric ・Interlock section: fire-resistant semi-rigid vinylchloride |
|---|---|
| Color | Black Gray |
| Standard length | 50m（10φ～50φ） 25m（70φ～100φ） |
| Operating temperature | -15℃ to 70℃ |

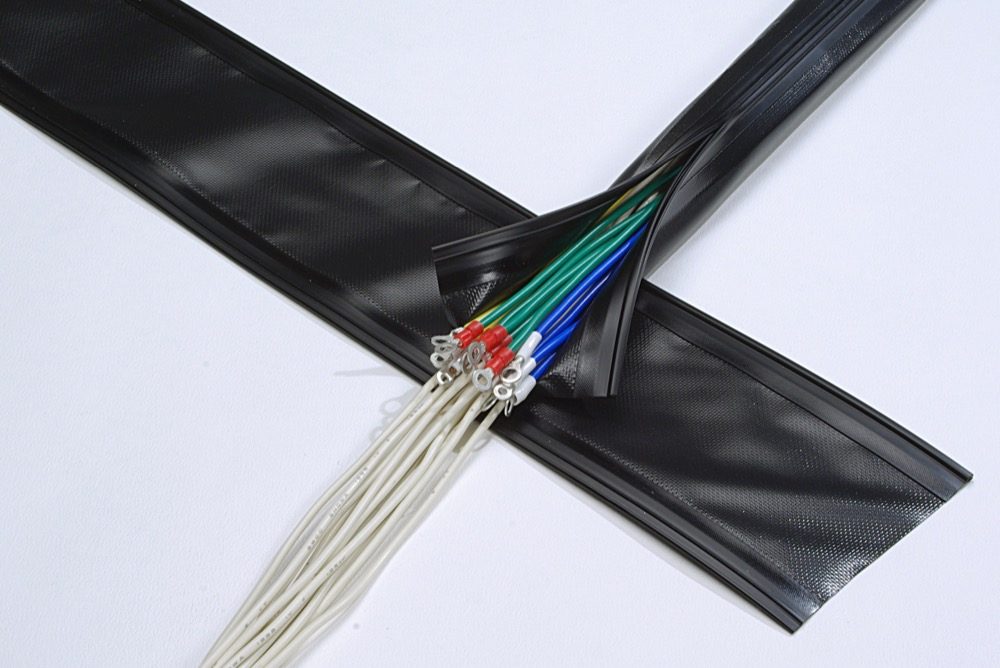

Features
- Excellent workability is ensured by the material of the interlock section that changes its hardness little even at low temperatures.
- The interlock section provides excellent air-tightness to prevent the inclusion of external dust.
- Available in 10 sizes from 10φ to 100φ, the tube fits any wiring variation for perfect coating.
- The material is so flexible that it can fit any wiring shape and help produce neat appearance.

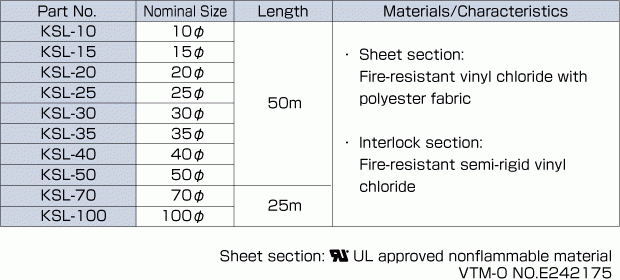

Type List(KSL)
Packaging
◆The tube can be pulled out from the slot of the external box.
◆Not using any metallic parts, the bobbin and the external box can be readily discarded.
Exclusive Slider
The tube can be interlocked easily using the exclusive slider (optional).
