| Material | Polyvinyl chloride |
|---|---|
| Color | Gray |
| Standard length | Length 1,000mm /piece |
| Operating temperature | -20℃～50℃ |
Features
- It is possible to infix the wires through banding bands at oval hole
- It is possible to choice a side by use because cross-section shape is a concavo-convex figure
- Applied UL approval materials
- Easier to cut process than metallic
Specification
Quantity per packing 20pieces/pack
Type(KPA)
KPA-1000

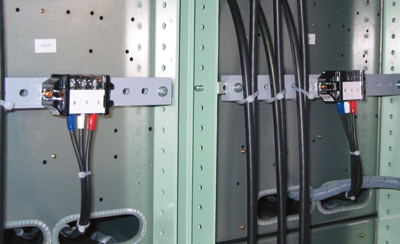

Example of Use

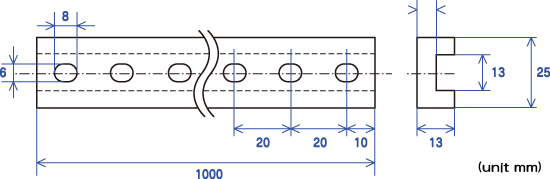

Dimensional drawing
